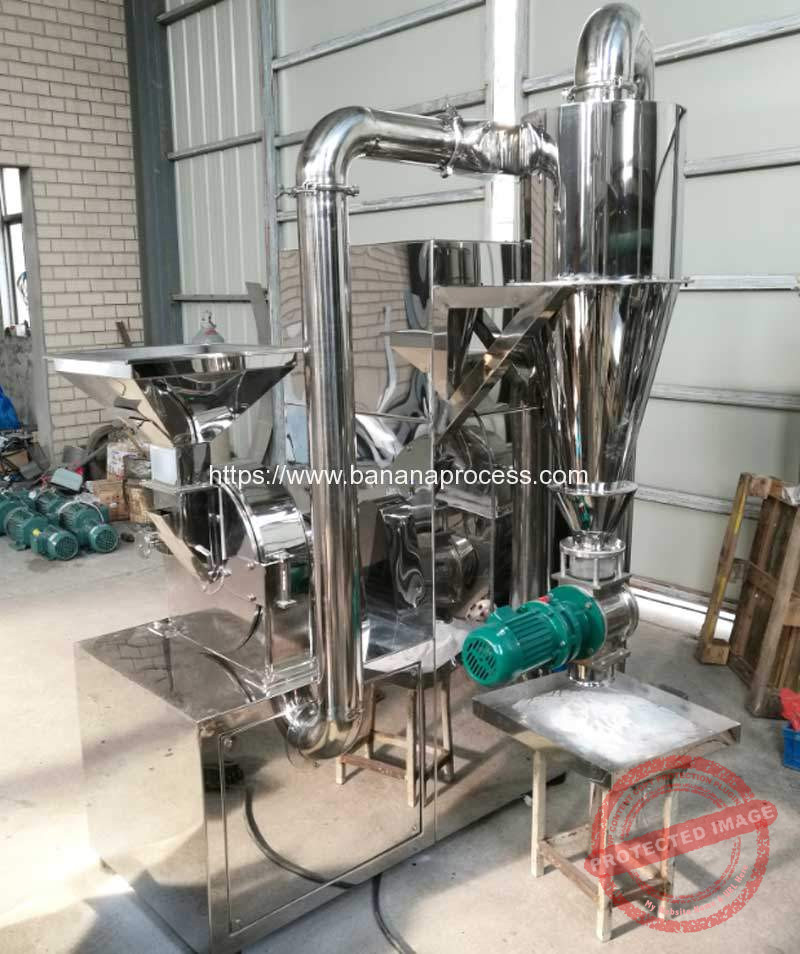

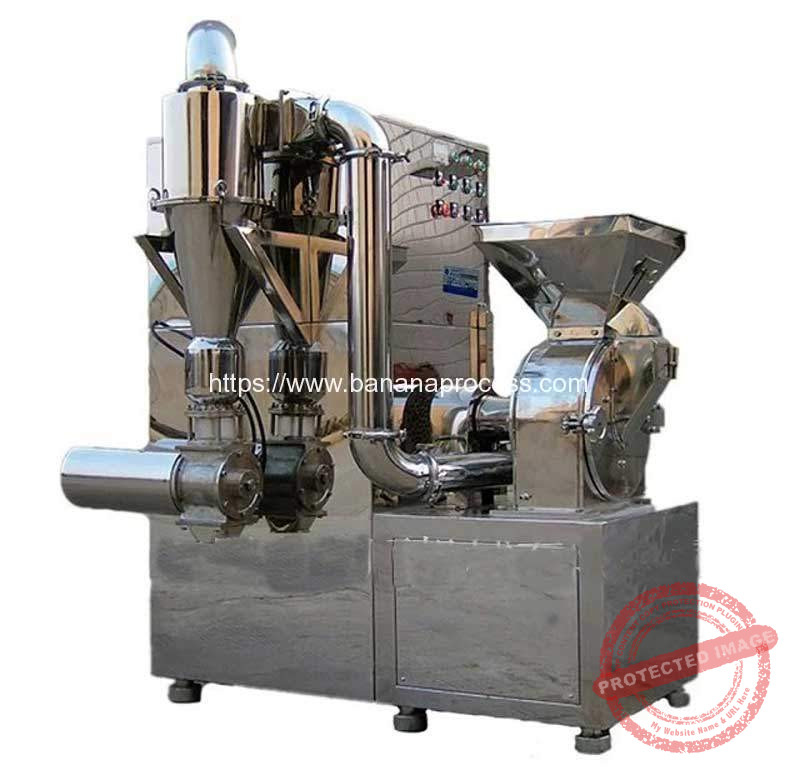

Continuous Type Integrated Banana Flour Grinder Machine is used to grind dried banana slice or plantain slice into flour. It adopts compact design which includes powder crushing function, dust collection device, pulse dust removing box and automatic powder discharge device. Multi-Functional Continuous Ginger Powder Grinder is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, This Plantain Powder Grinder Machine is with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials and it has a good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oils.
Table of Contents
Working Principle of Continuous Integrated Plantain Flour Grinder
The machine used the high-speed relative motion of the active fluted disc and the fixed fluted disc to impact and crush the raw material. The different size of granules can be acquired by changing different screen. The crushed material goes through the cyclone separator by the rotating centrifugal force and the suction of fan, Dust is collected by pulse dust collecting box. This Ginger Powder Grinder Machine is designed according to GMP Standard and is made of stainless steel. It has the advantages of simple structure, low energy consumption, easy cleaning.
- In the machine chamber, there is the leaf structure. When operation, the air in the grinding chamber is blown out by the rotary leaves taking out the heat. Therefore, there is no much heat in the chamber to ensure the characteristic of the material.
- When operation, the strong air flow can expel the material out. So it can pulverize the heat-sensitive and sticky material with good effect.
- For the good performance on the heat, it can be the substitute for universal crusher.
- Expect the full force of the fan, the air flow in the grinding chamber blows the fine powder out (the fineness of the powder is adjustable through the sieves). Thus, it can increase the capacity of the machine.
Specification of Integrated Continuous Banana Flour Grinder
| Model | 20B | 30B | 40B | |
| Capacity | KG/H | 40-200 | 100-400 | 160-800 |
| Feeding size | mm | <10 | <12 | <15 |
| Powder Size | mesh | 20-120 | 20-120 | 20-120 |
| Motor Power | KW | 4 | 7.5 | 11 |
| Dust Collection Power | KW | 1.5 | 2.2 | 3 |
| Spindle Speed | R/M | 4500 | 3800 | 3400 |
| Weight | Kg | 400 | 650 | 780 |
| Size | mm | 1250*100*1900 | 1350*1100*2000 | 1500*1250*2100 |
Working Video of Banana Plantain Flour Grinder Machine
