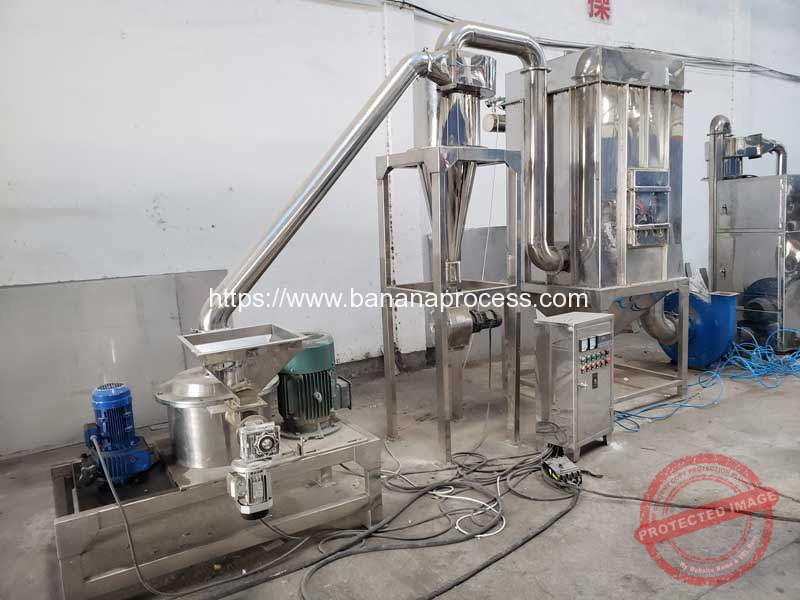

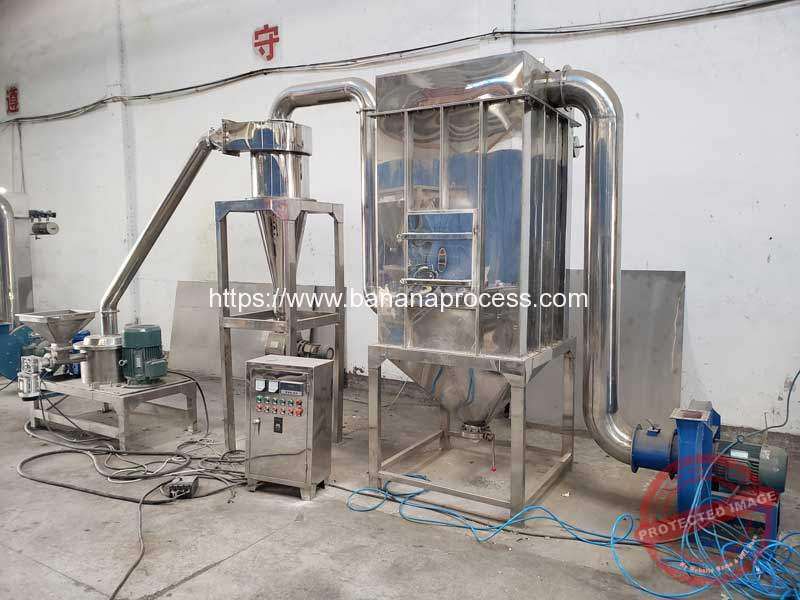

Continuous Working Plantain Flour Crushing Making Machine with Dust Collector is used to crush dry banana chips slice to powder. It adopts continuous material feeding and continuous powder discharge. This Plantain Flour Crushing Plant with Dust Collector is suitable for many different type material powder making, such as spices and grains of Turmeric Powder, Chili Powder, Pepper Powder, Wheat flour, Rice Powder etc.
Specification of Multi-Functional Plantain Powder Grinder Plant
| Model | RM-MC30 | RM-MC40 | RM-MC50 | RM-MC60 | RM-MC80 |
| Capacity (kg) | 100-300 | 160-800 | 200-1000 | 250-1500 | 350-2000 |
| Feed Size (mm) | <12 | <15 | <18 | <20 | <25 |
| Output Size (mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Discharge Motor Power (kw) | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 |
| Dust Collection Power | 5.5 | 7.5 | 11 | 15 | 22 |
| Crushing Motor Power | 7.5 | 11 | 15 | 22 | 30 |
| Weight (kg) | 1100 | 1400 | 1800 | 2100 | 2450 |
| Dimension(L*W*H)(mm) | 5000*1300*2900 | 5500*1350*3100 | 6200*1450*3250 | 7500*1500*3450 | 8500*1550*3800 |
| Model | RM-MFC15 | RM-MFC20 | RM-MFC30 | RM-MFC60 | RM-MFC80 |
| Capacity (kg) | 50-200 | 80-300 | 100-800 | 200-1200 | 500-1500 |
| Feed Size (mm) | <10 | <10 | <15 | <18 | <20 |
| Output Size (mesh) | 80-450 | 80-450 | 80-450 | 80-450 | 80-450 |
| Motor power (kw) | 13.5 | 17.5 | 46 | 84.15 | 100.4 |
| Spindle speed (rpm) | 6000 | 4800 | 3800 | 2800 | 2400 |
| Weight (kg) | 1300 | 1700 | 2300 | 3200 | 3800 |
| Dimension(L*W*H)(mm) | 4200*1200*2700 | 4700*1250*2900 | 6840*1300*3650 | 7500*2300*4530 | 8200*2500*4600 |
Working Video of Continuous Working Powder Crushing Making Plant
Company Profile
Romiter Machinery Co., Ltd. is a market leading designer and a manufacturer of Banana Processing Machine with 10 years’ experience. In the past 10 years, we focused on researching and designing the machinery which could process the banana into different types. Romiter Banana Processing Machine meet Europe Quality Requirement. with CE Certification
Romiter Group provides a complete Banana Processing Solution, which includes Unripe Green Banana Peeling Machine, Ripe Banan Peeling Machine, Banana Longitudinal Slicer Machine, Banana Chips Slicing Machine, Fring Banana Chips Production Line, Banana Powder Production Line and Banana Packing Machine
Romiter Group can provide customized products for customers. Welcome to contact us for more information.
