Manual Book of Auto Feeding Green Banana Peeling Machine
Auto Feeding Green Banana Peeling Machine is patent product invented by Anyang Romiter Machinery Co.,LTD.. The equipment adopts the mode of manual pressing and automatic peeling. The operator will feed the green banana from the feeding port of the equipment, and the banana will be peeled automatically inside the equipment.The banana and waste skin are separated and transported out of the equipment.
Table of Contents

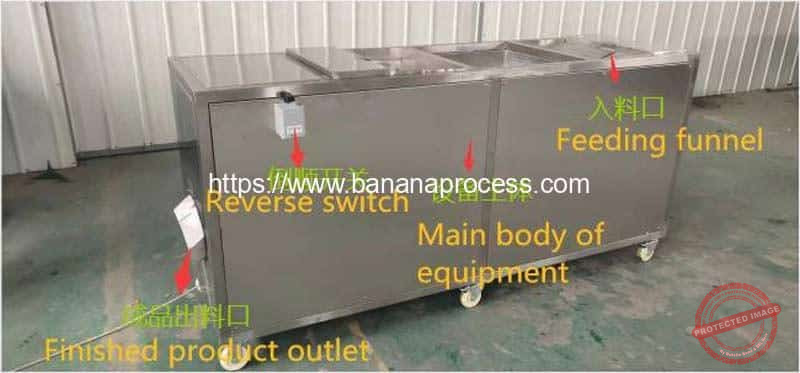

The equipment consists of the following parts:
- Green banana feeding funnel: green banana enters into the equipment for peeling.
- Main body of equipment: the internal part includes banana peeling part and separation device of finished product and waste.
- Finished product conveyor belt: conveyor belt for peeled bananas.
- Waste conveyor belt: conveyor belt for stripping waste skin.
- Power distribution cabinet: electrical control cabinet of equipment.(P1）
Main Technical Data of Green Banana Peeling Machine
- Power：Three-phases 380V，50HZ+ground wire
- Installation: step on the caster brake of the equipment.

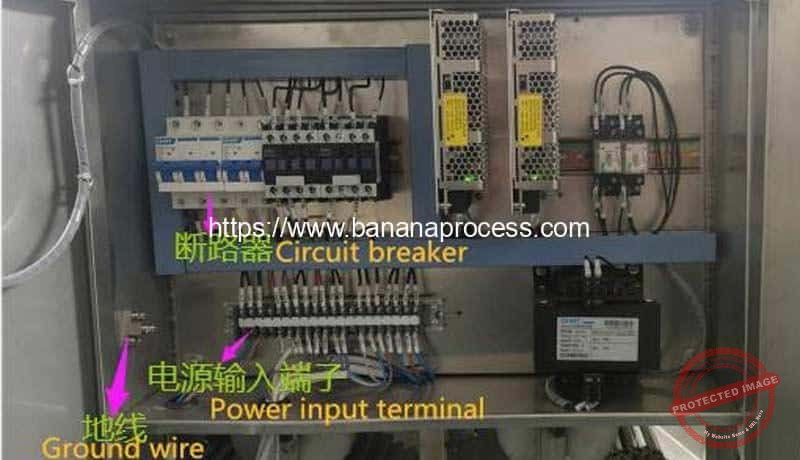

- Connect the power supply：Connect the power line (three-phase four wire) to the input terminal block, ground wire and ground wire terminal, and close the circuit breaker.
How to Operate Green Banana Peeling Machine

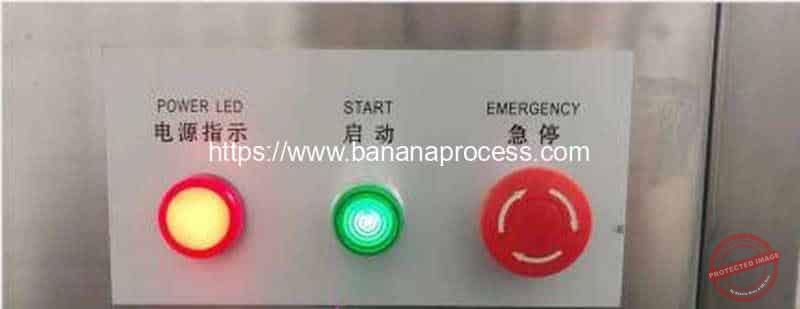

1、At this time, the power indicator light is on, press the “start” button, and the equipment runs normally（P3）
2 、 The “emergency stop” button is an emergency braking button, which can be pressed at any time to stop the operation of the equipment, and the operation can be continued after reset.

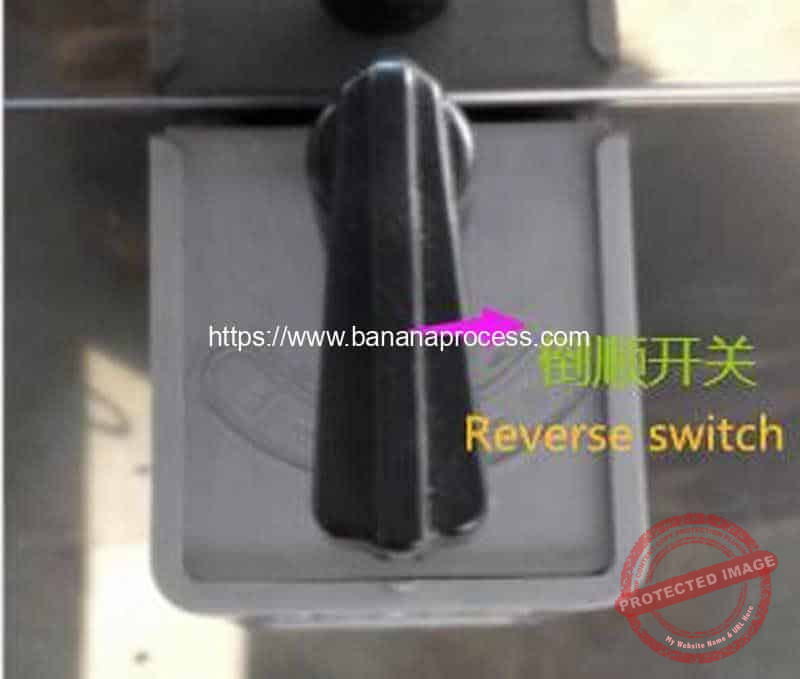

3 、 In normal use, if the banana is stuck, turn the “reverse switch” to one side to reverse the motor and drain the stuck banana.
Note: if the stuck time is too long and the power supply is cut off, turn off the main power supply for 3 seconds and then turn it on

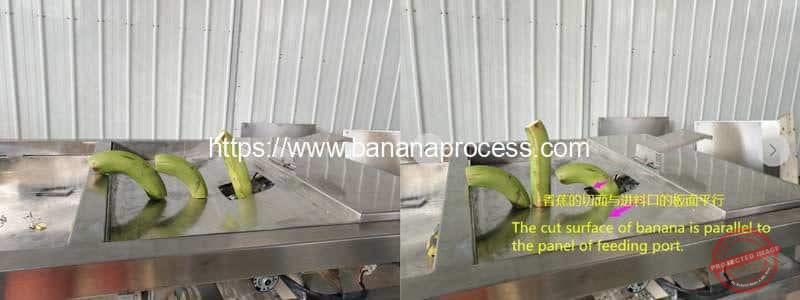

4、Proper placement of bananas
As P5 The angle between the bent banana and the straight banana should be adjusted according to the bending degree of the banana itself. The cut plane of the banana is parallel to the angle of the panel.
If need more detail book, please contact us.
