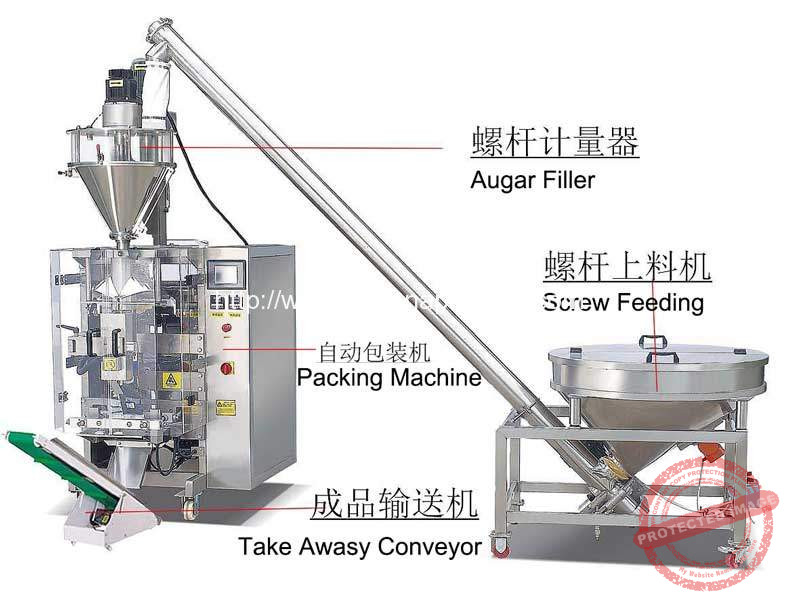

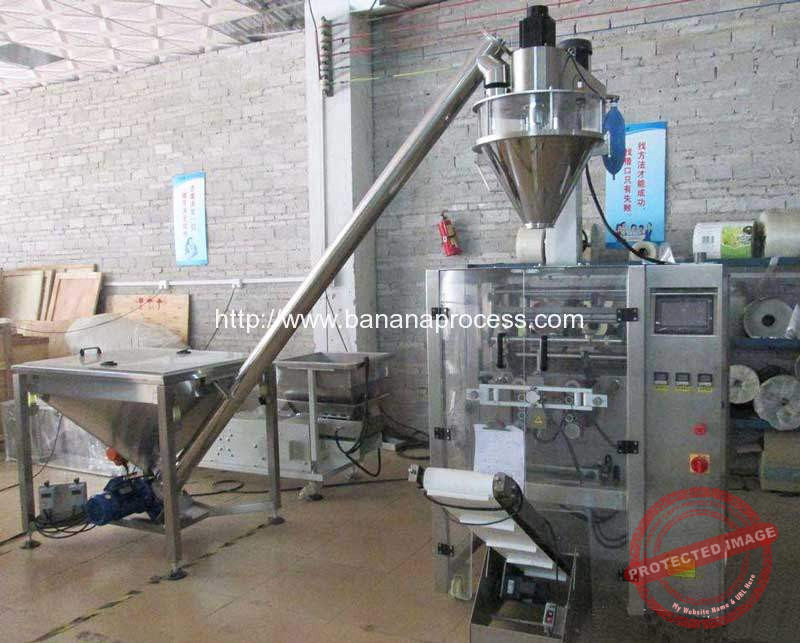

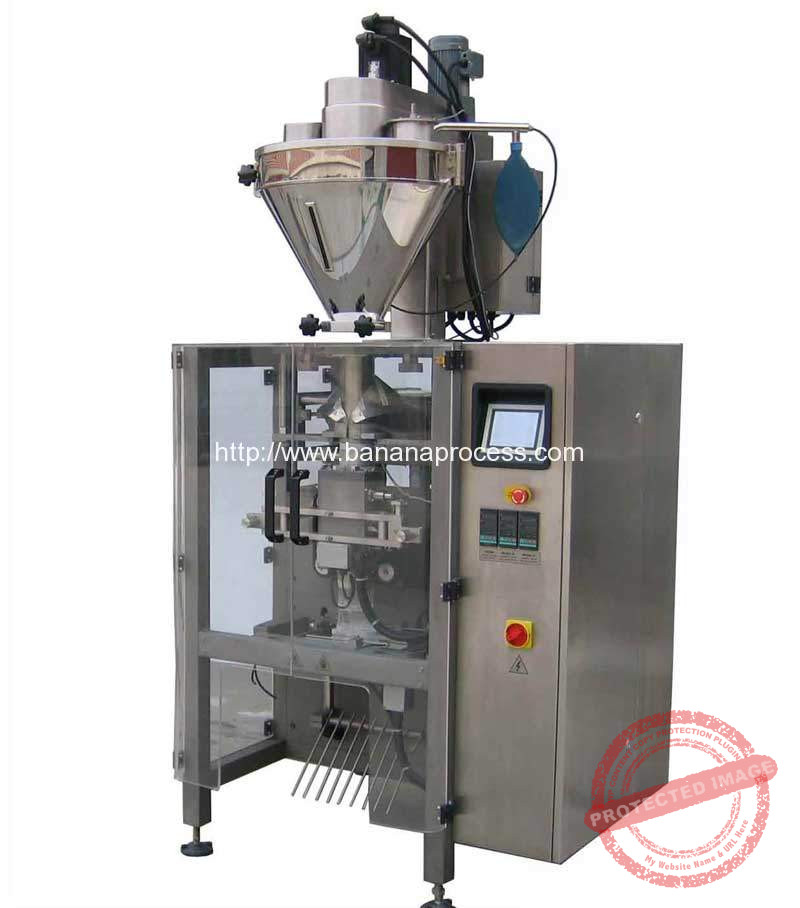

Automatic Banana Flour Powder Dosing Machine is used to pack various fine powders, like milk powder, flour, coffee powder, soybean powder, medicine powder, cosmetic powder, facial mask powder, starch etc. Powder Screwing Feeding Packiing machine conforms to the food processing machinery’s sanitation standard. It’s fully automated operation, is improved and the production of a kind of high quality, high performance automatic packaging machine, complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions. According to customer requirement, this machine can pack back sealing bag, pillow bag and pouch bag.
Table of Contents
Main Feature of Banana Flour Packing Machine
- PLC control with stable and reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, and finished in one operation.
- Separate circuit boxes for pneumatic control and power control.Noise is low,and the circuit is more stable
- Filmpulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance; belt is resistant to be worn-out.
- Double servo control, high precision orientation, size more nicety.
- External film releasing mechanism: simpler and easier installation of packing film.
- Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.
- Close down type mechanism, defending powder into inside of machine.
- The machine adopt servo motor control, screw measuring , precision 1%.
- Adjustment product weight without any tools.
- Filling head can be changed, suitable for mix film and PE film.
Specification of Full Banana Flour Packing Machine
| Type | RM-D420 | RM-D520 | RM-D720 | RM-D820 | |
| Bag Length | mm | 50-300 | 80-400 | 120-500 | 100-500 |
| Bag Width | mm | 50-200 | 80-250 | 120-350 | 250-400 |
| Max Film Width | mm | 420 | 520 | 720 | 820 |
| Packing Speed | bags/min | 5-70 | 5-70 | 5-60 | 5-50 |
| Measuring Range | ml | 100-1200 | 3000 | 5000 | 15L |
| Air Consumption | Mpa | 0.65 | 0.65 | 0.65 | 0.65 |
| Gas Consumption | m³/min | 0.3 | 0.3 | 0.5 | 0.8 |
| Power | kw | 2.2 | 4 | 5 | 5 |
| Dimension | mm | 1470*1160*1450 | 1570*1255*1600 | 1745*1362*1700 | 1600*1530*2110 |
| Weight | kg | 500 | 600 | 700 | 850 |
